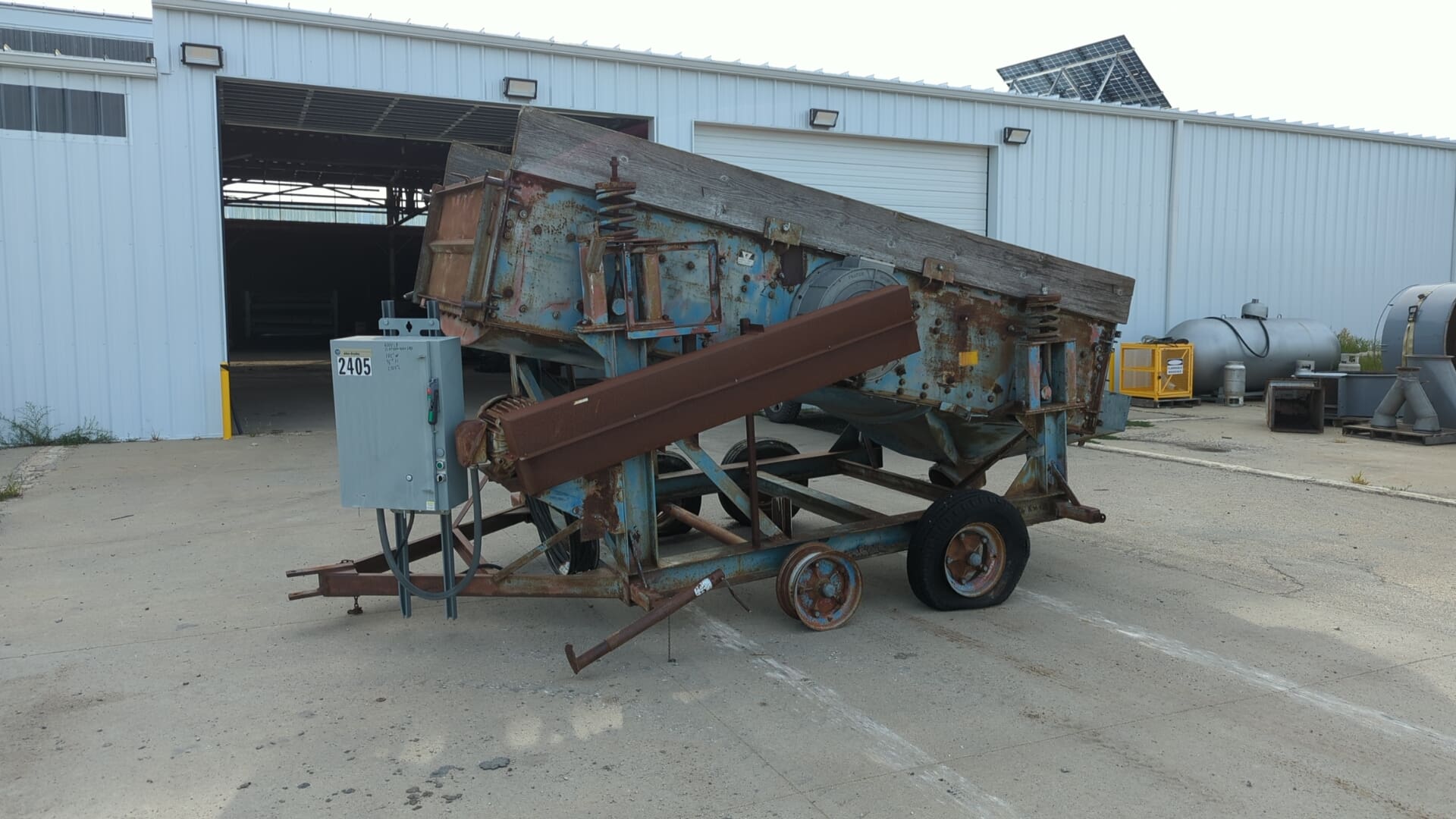

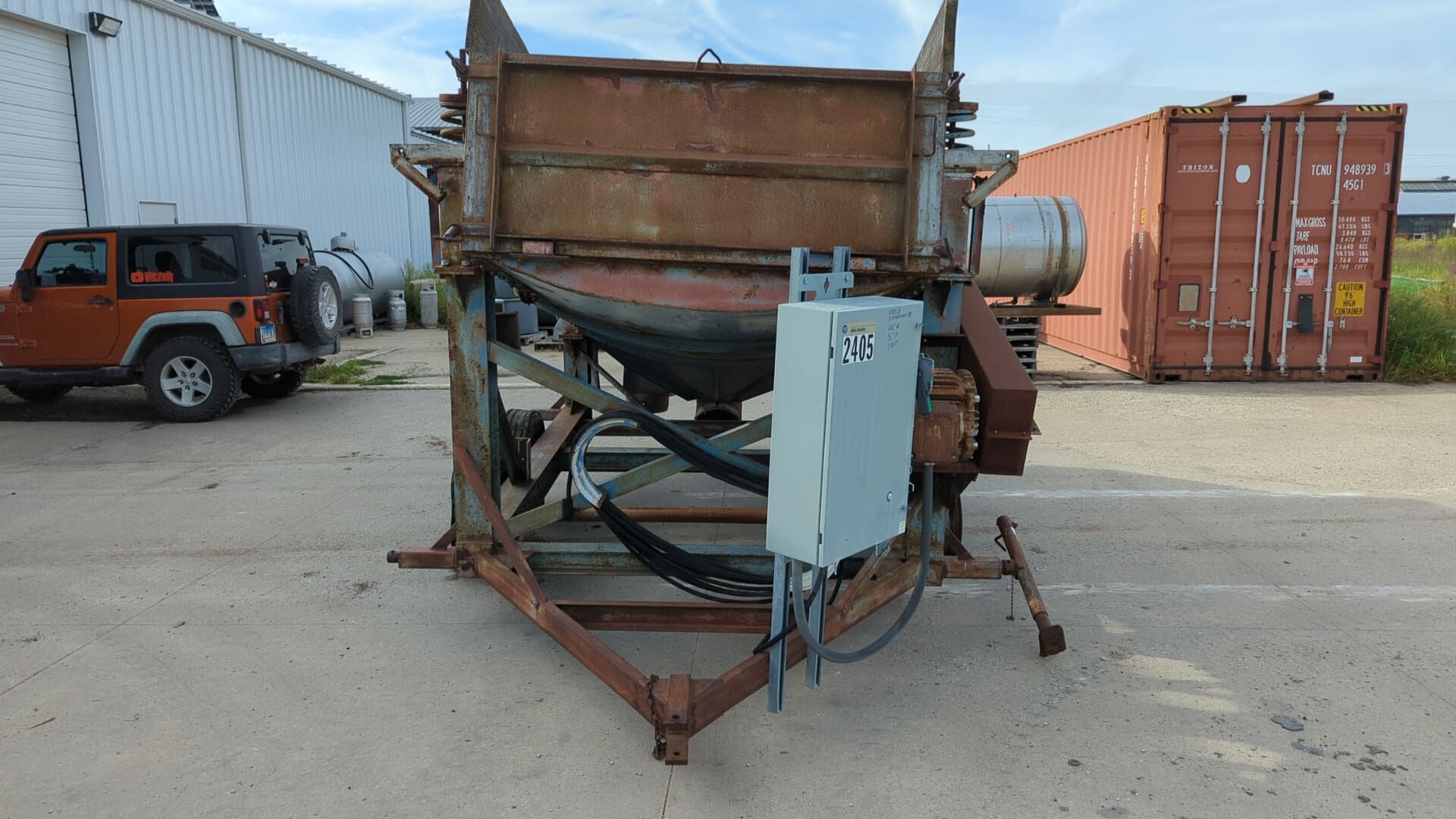

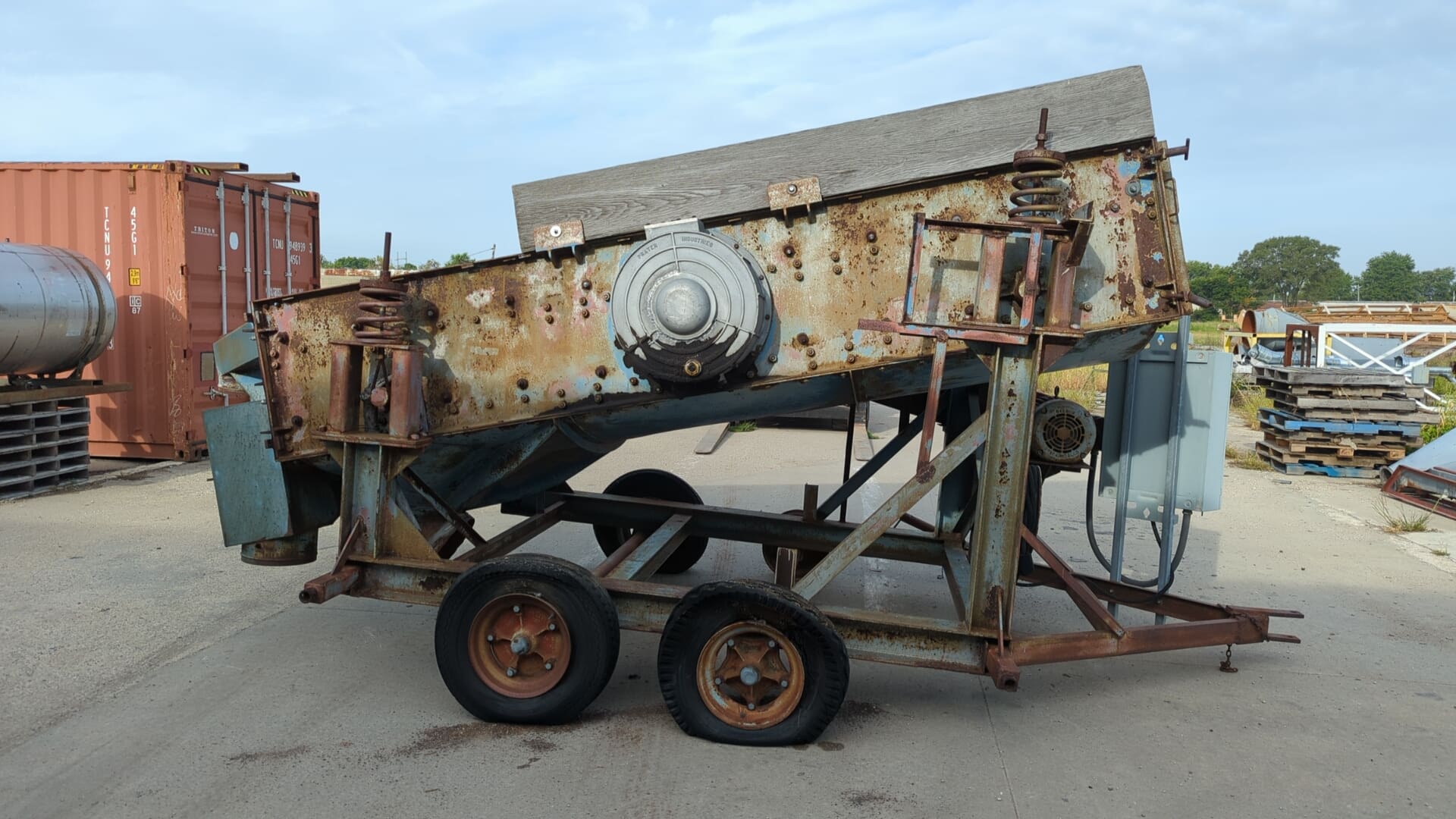

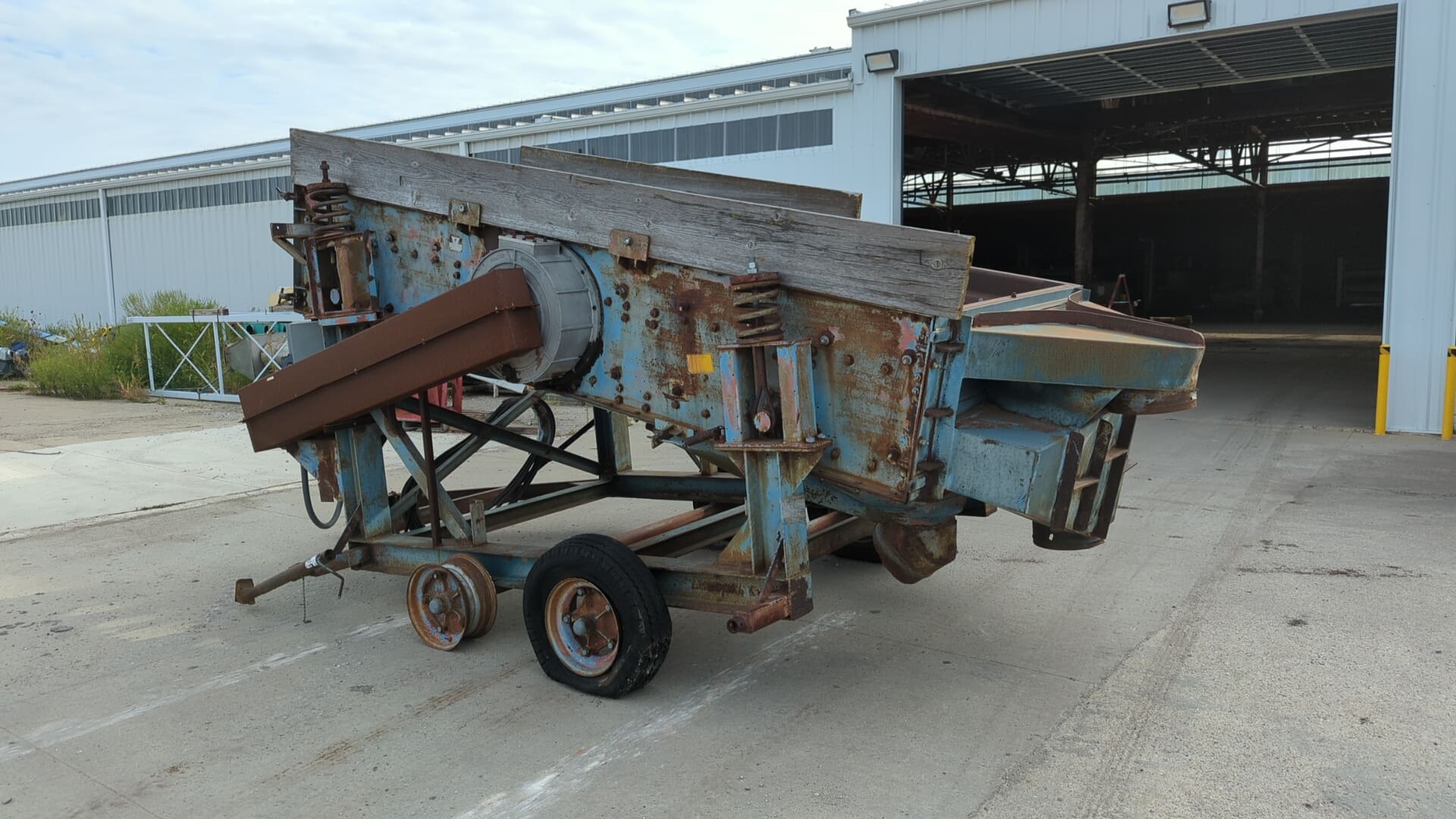

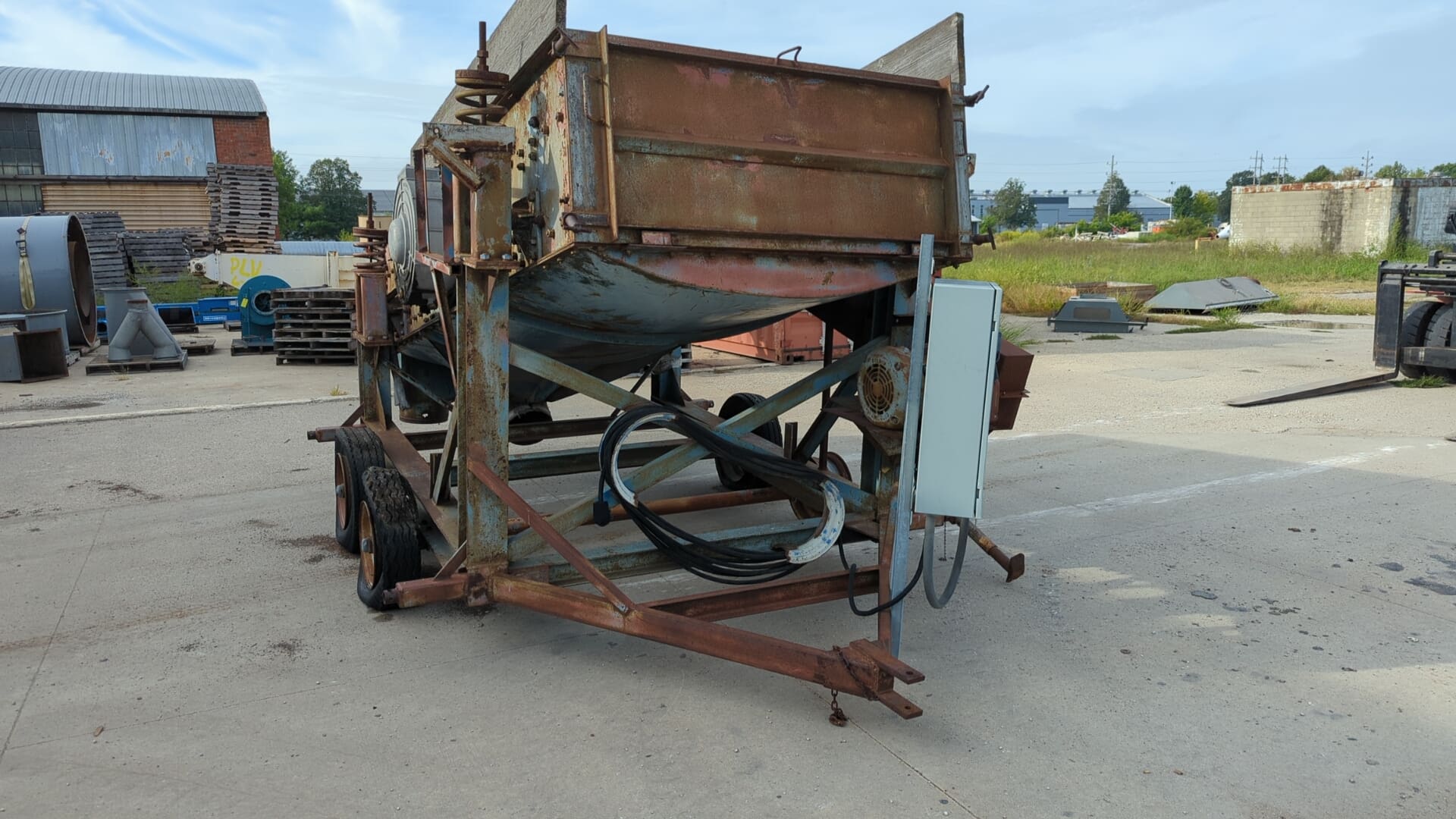

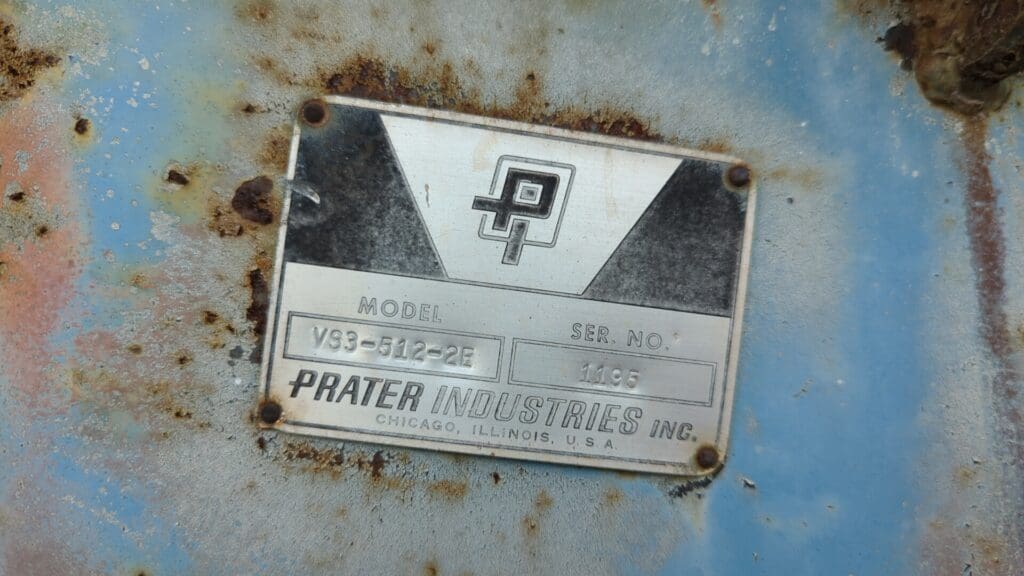

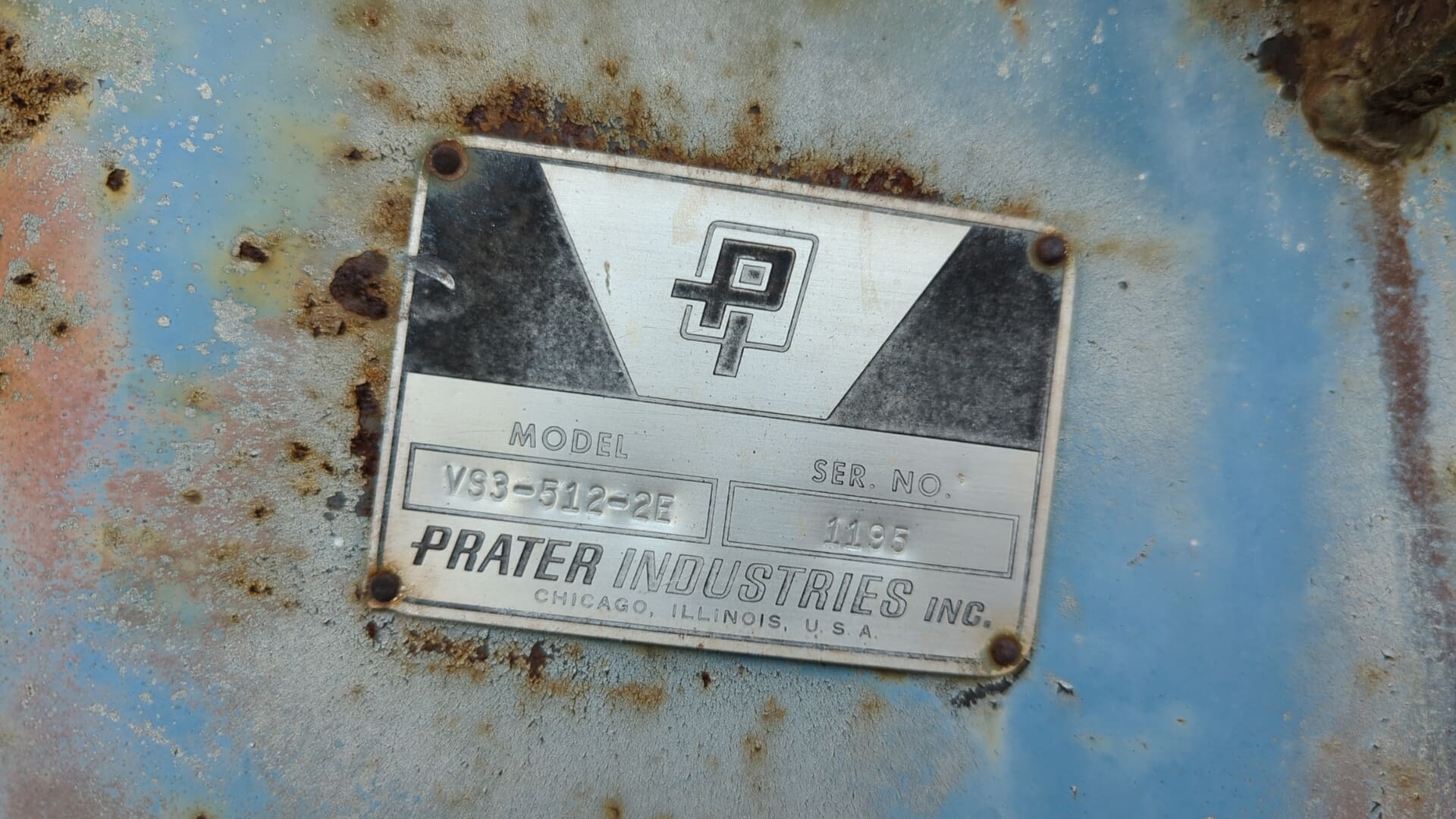

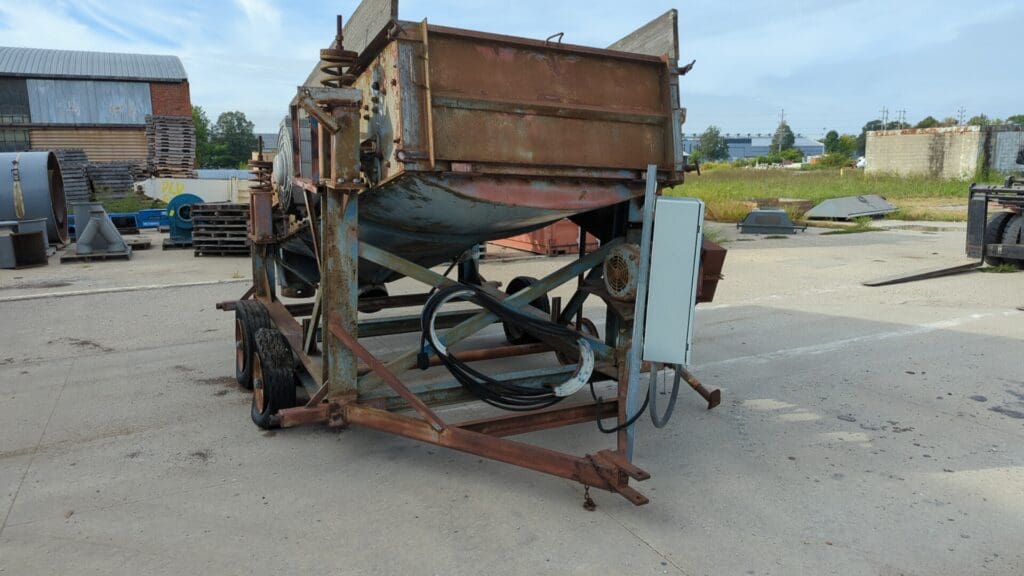

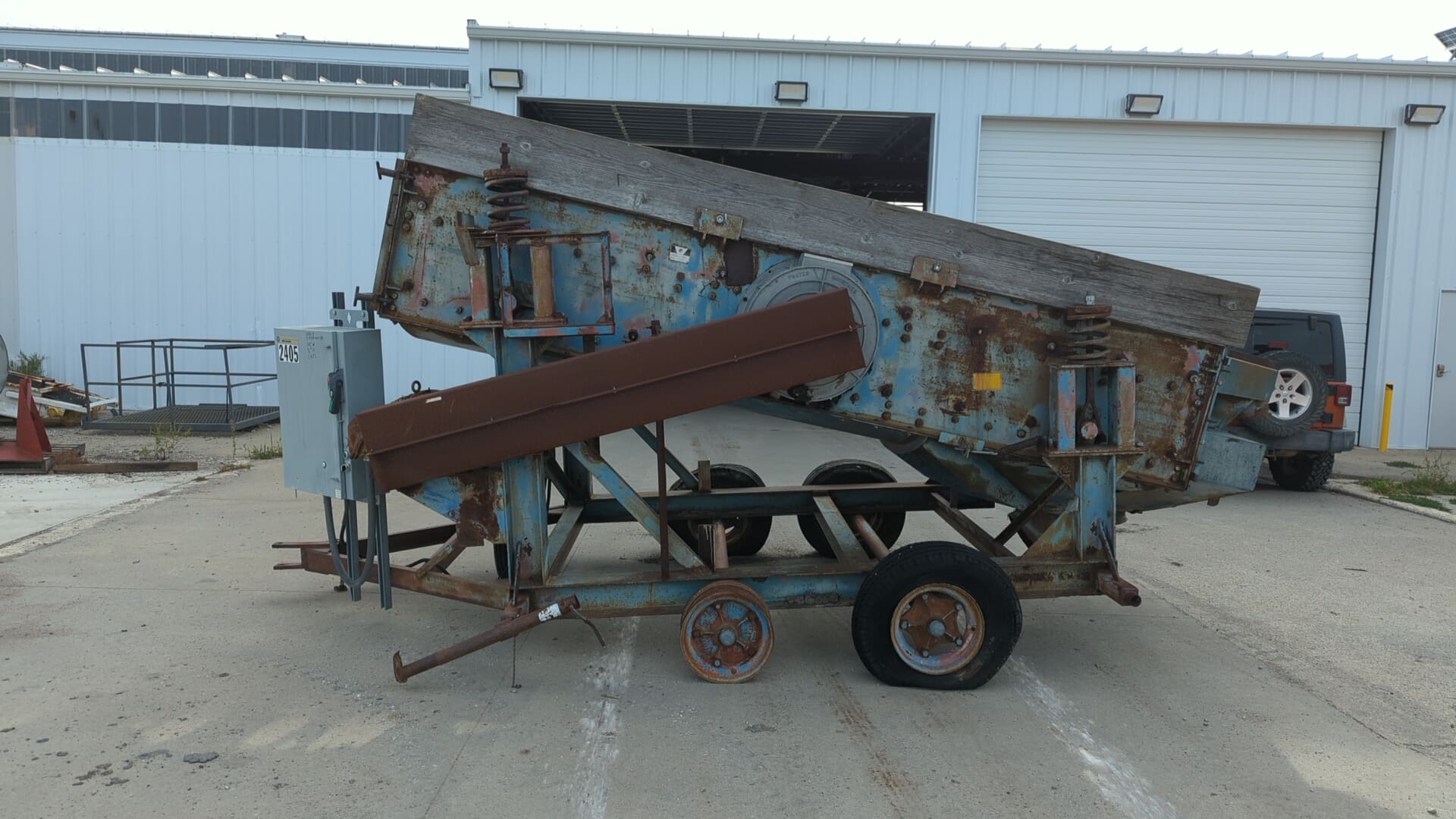

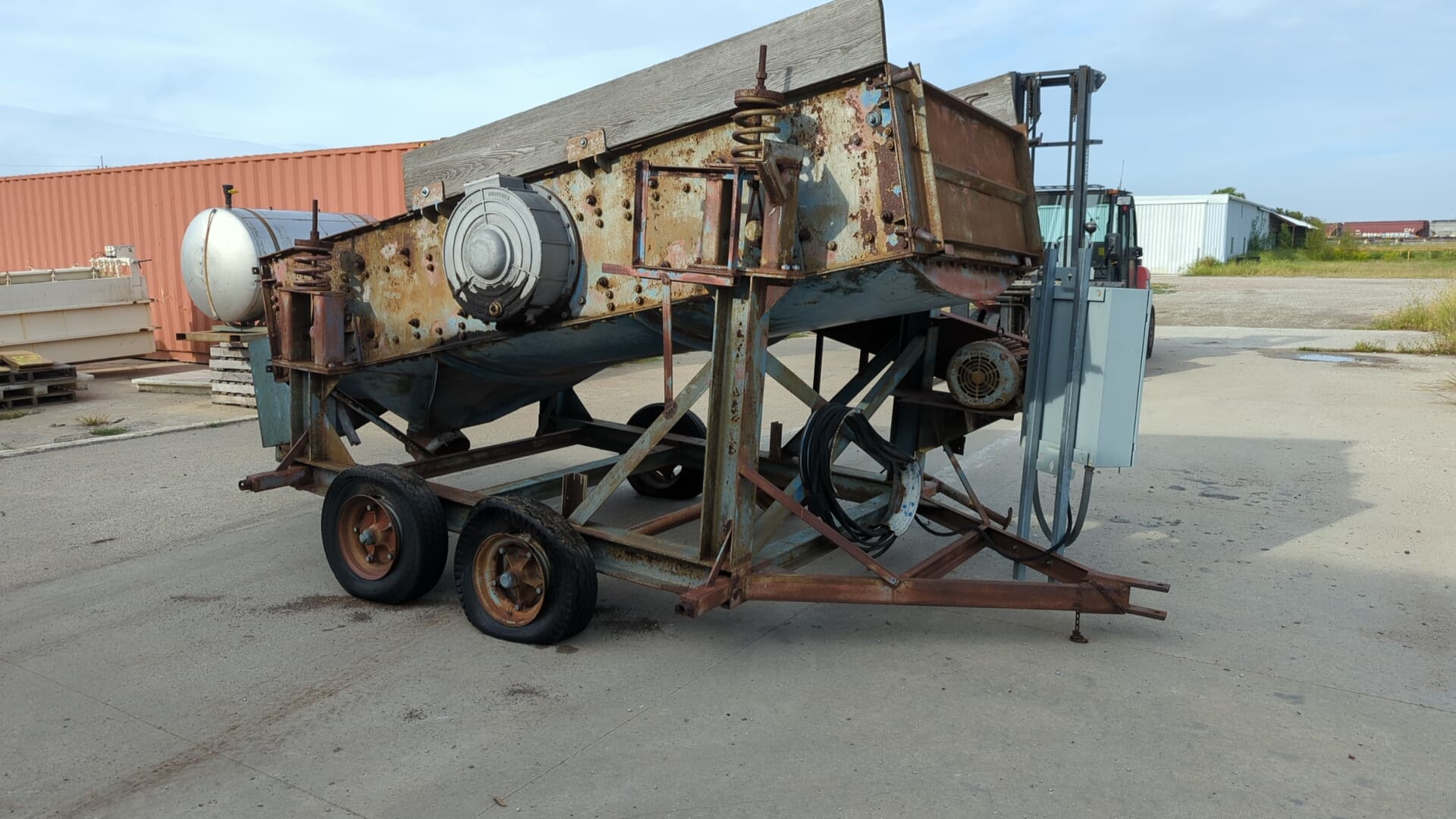

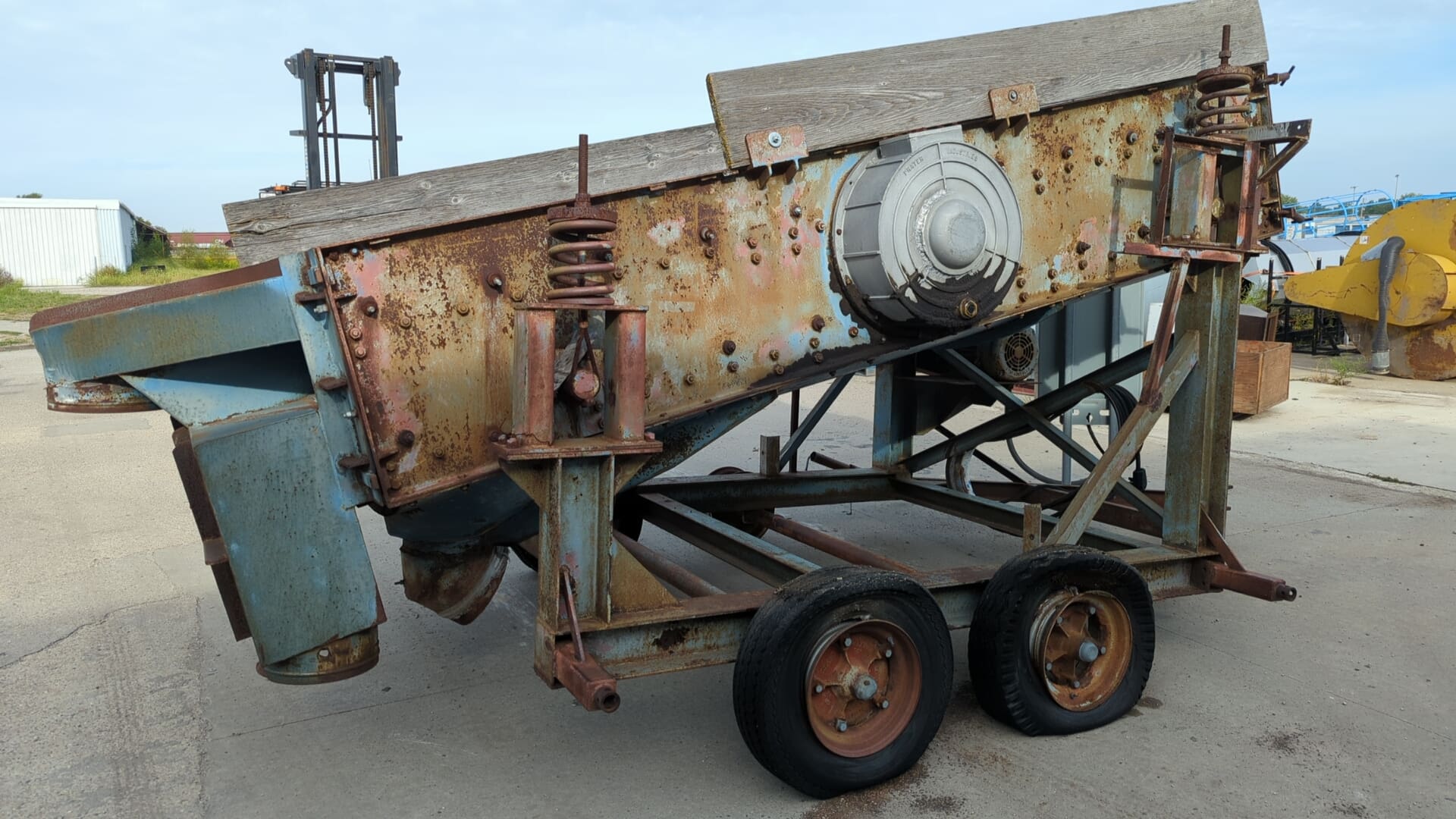

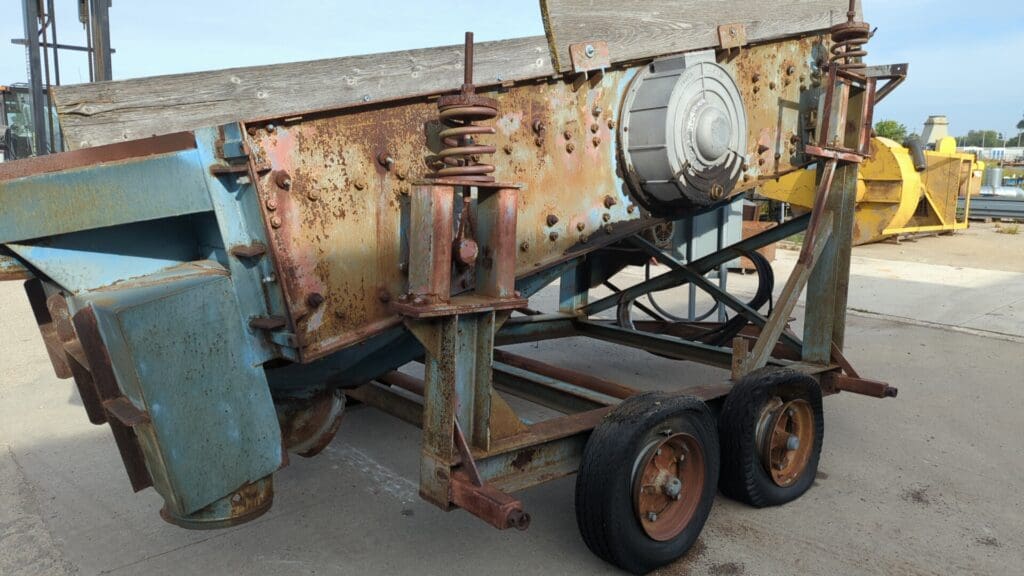

Prater Industries VS3-512-2E Two Screen Vibratory Screener

This is a heavy-duty, double-deck vibratory screener engineered for high-efficiency particle sizing and separation of dry bulk materials.

Key Specifications

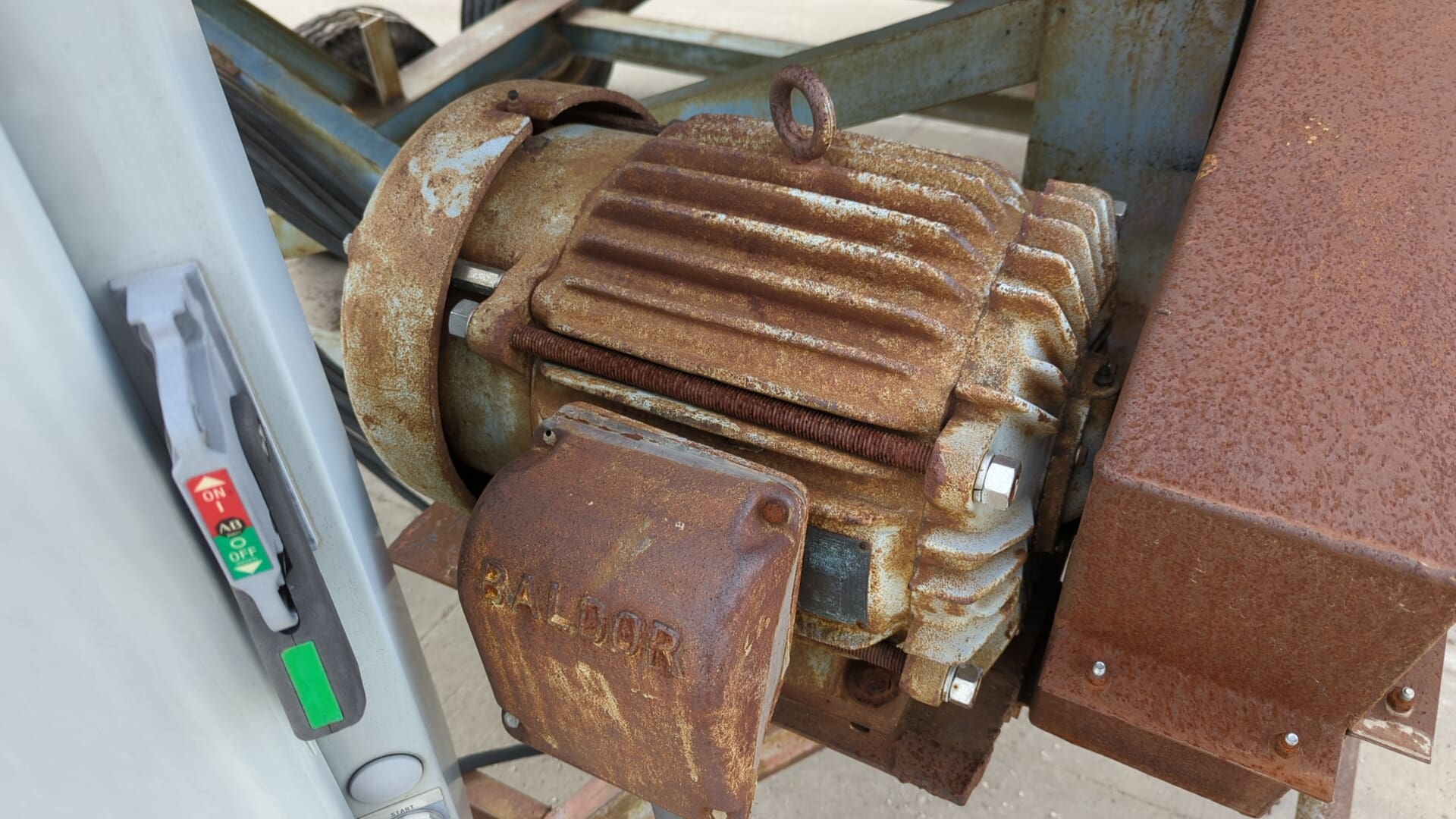

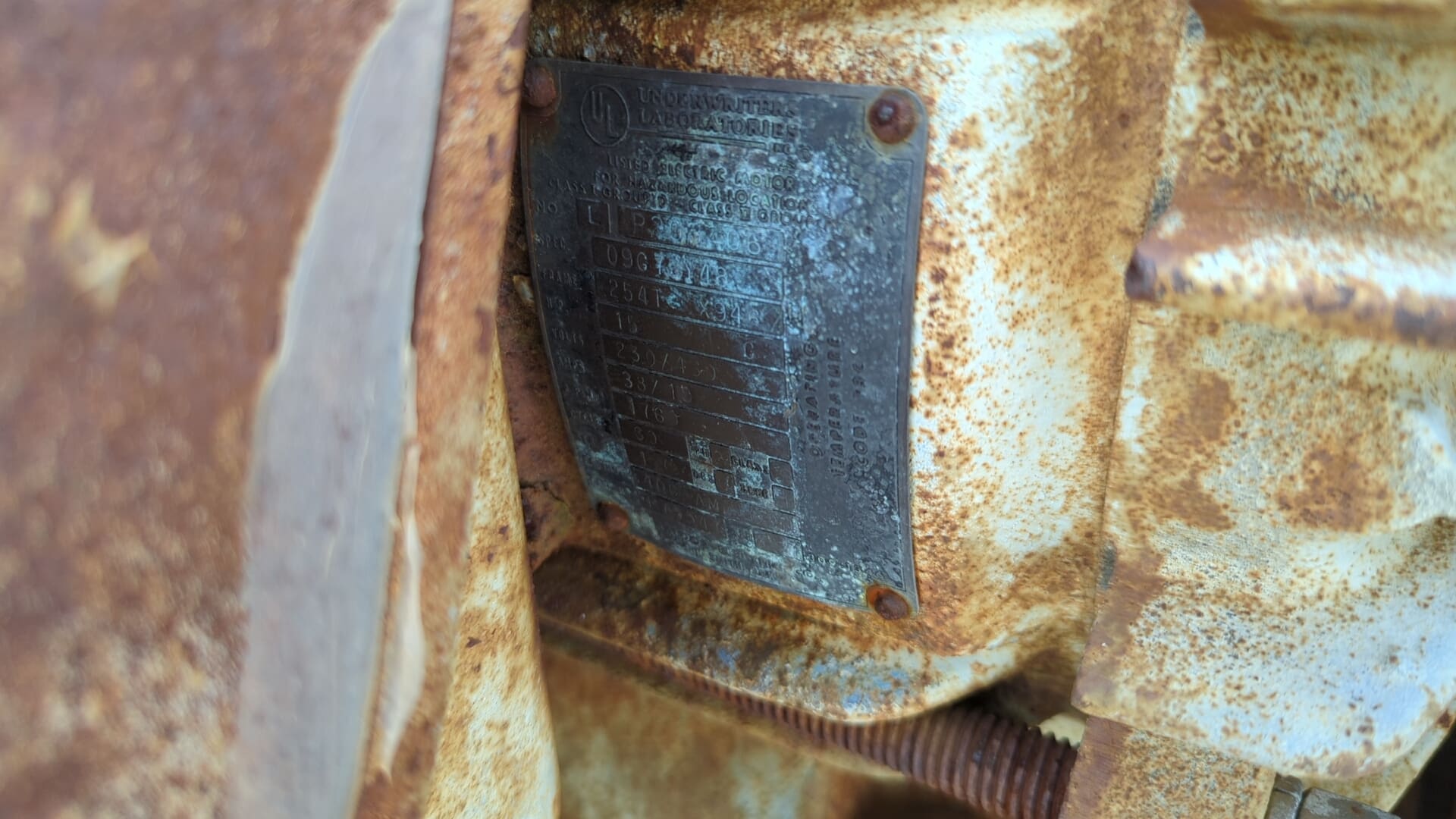

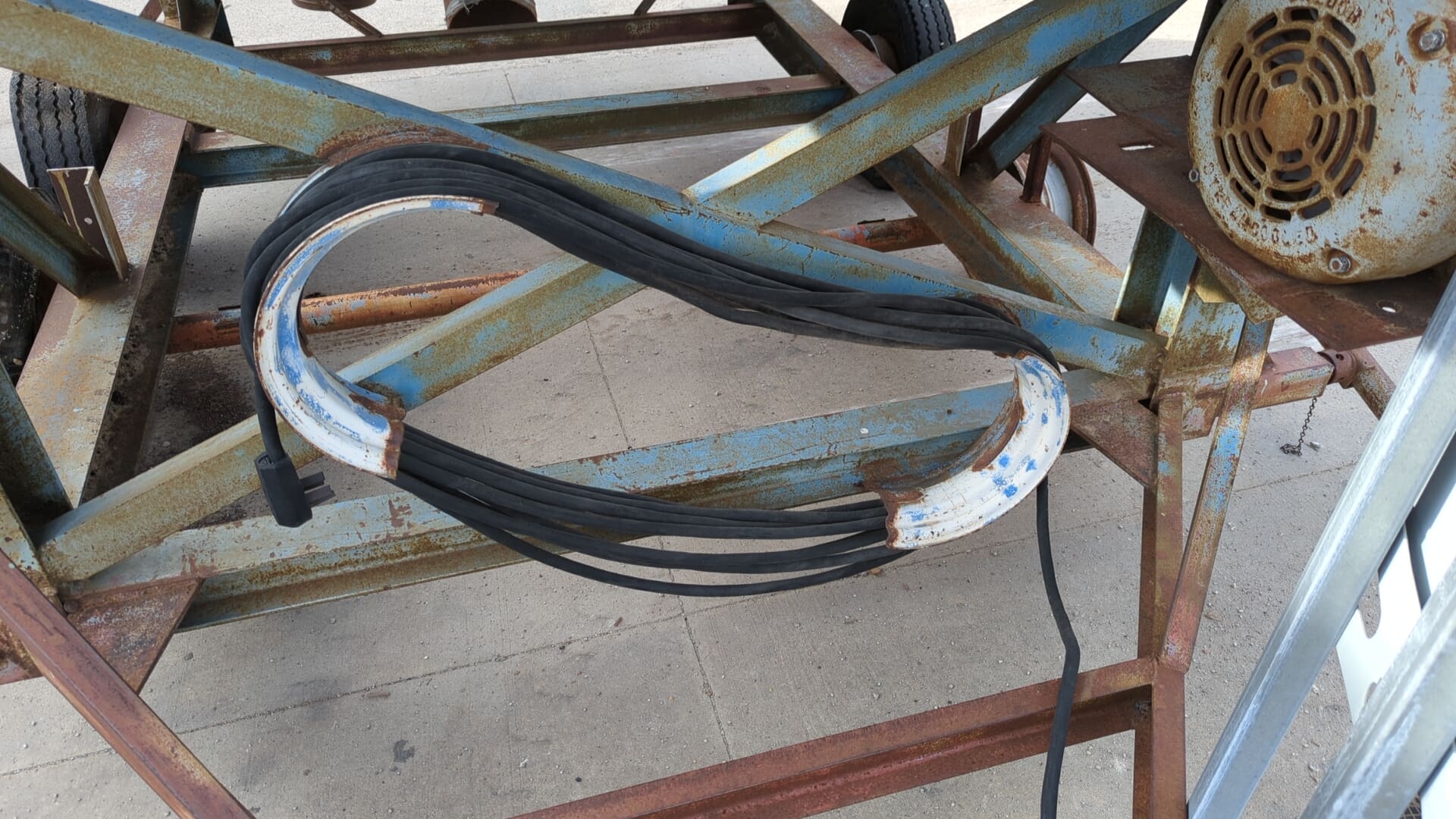

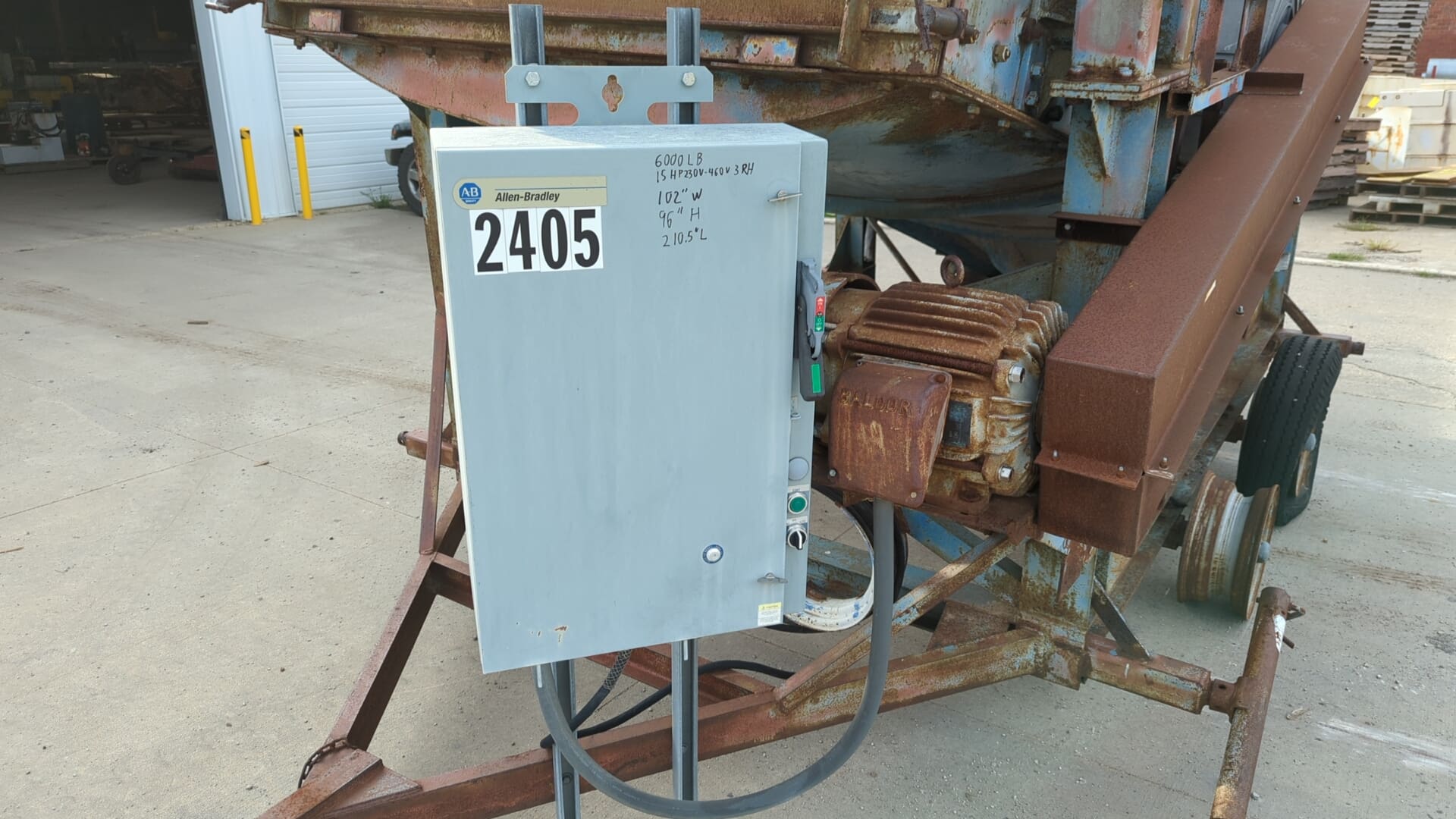

• Motor: Powered by a 15 horsepower, 230/460 volt, 3-phase Baldor electric motor (capable of being converted to single-phase).
• Dimensions: Measures 102 inches wide, 96 inches high, and 210.5 inches long.
• Weight: Weighs approximately 6,000 lbs.

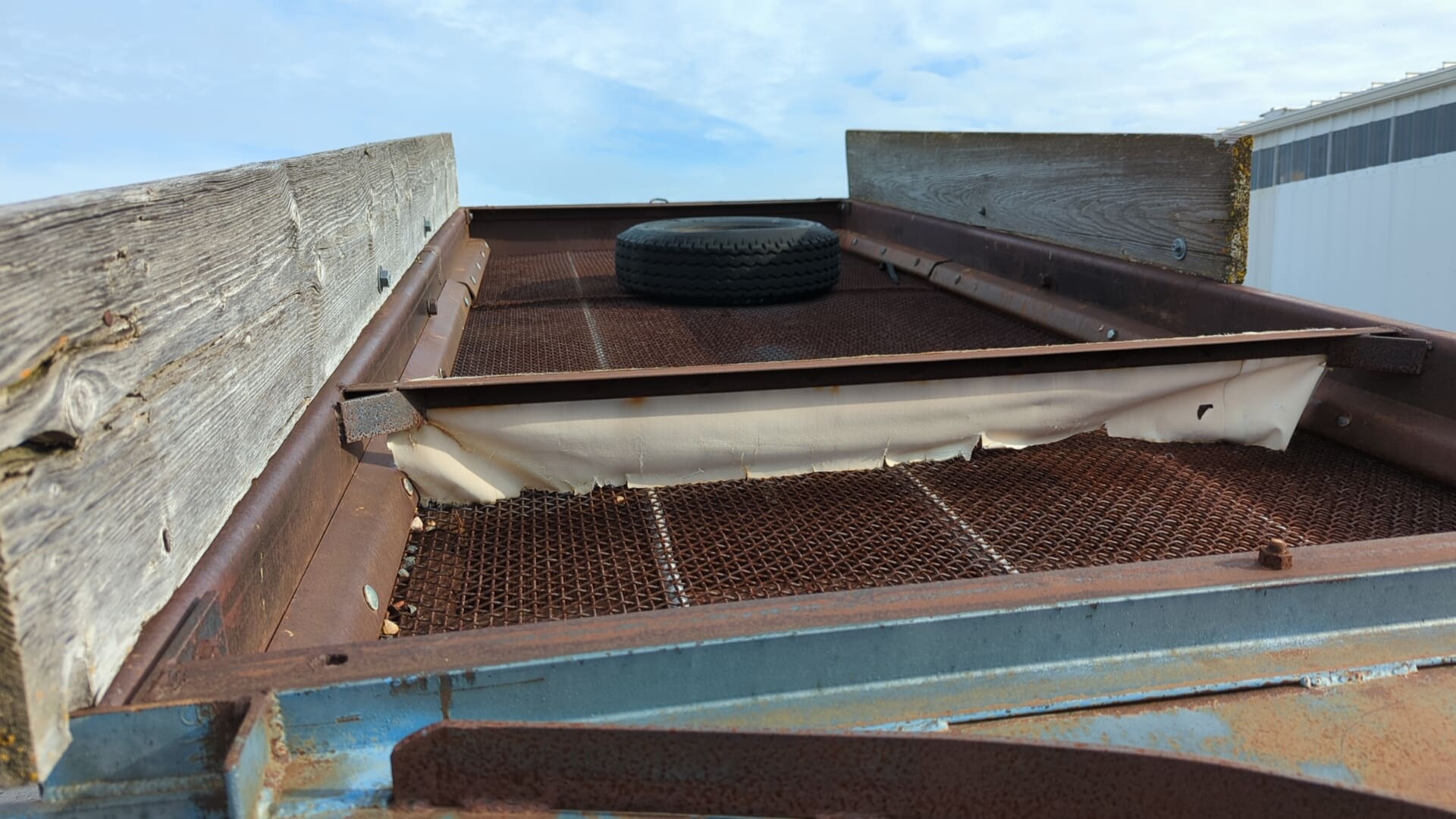

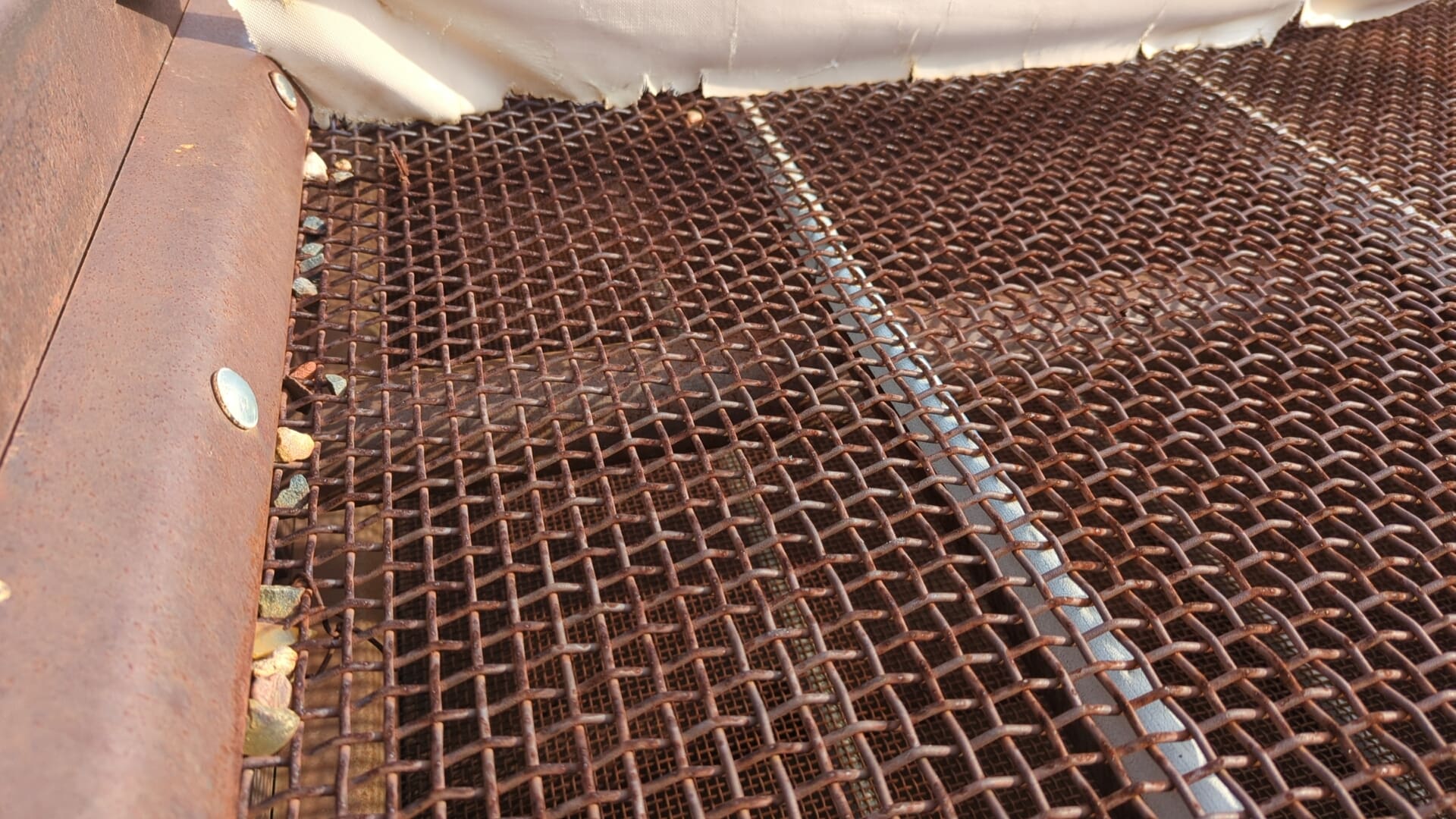

• Screen Configurations: Equipped with two screening decks featuring hole sizes of 7/16 of an inch and 3/16 of an inch.

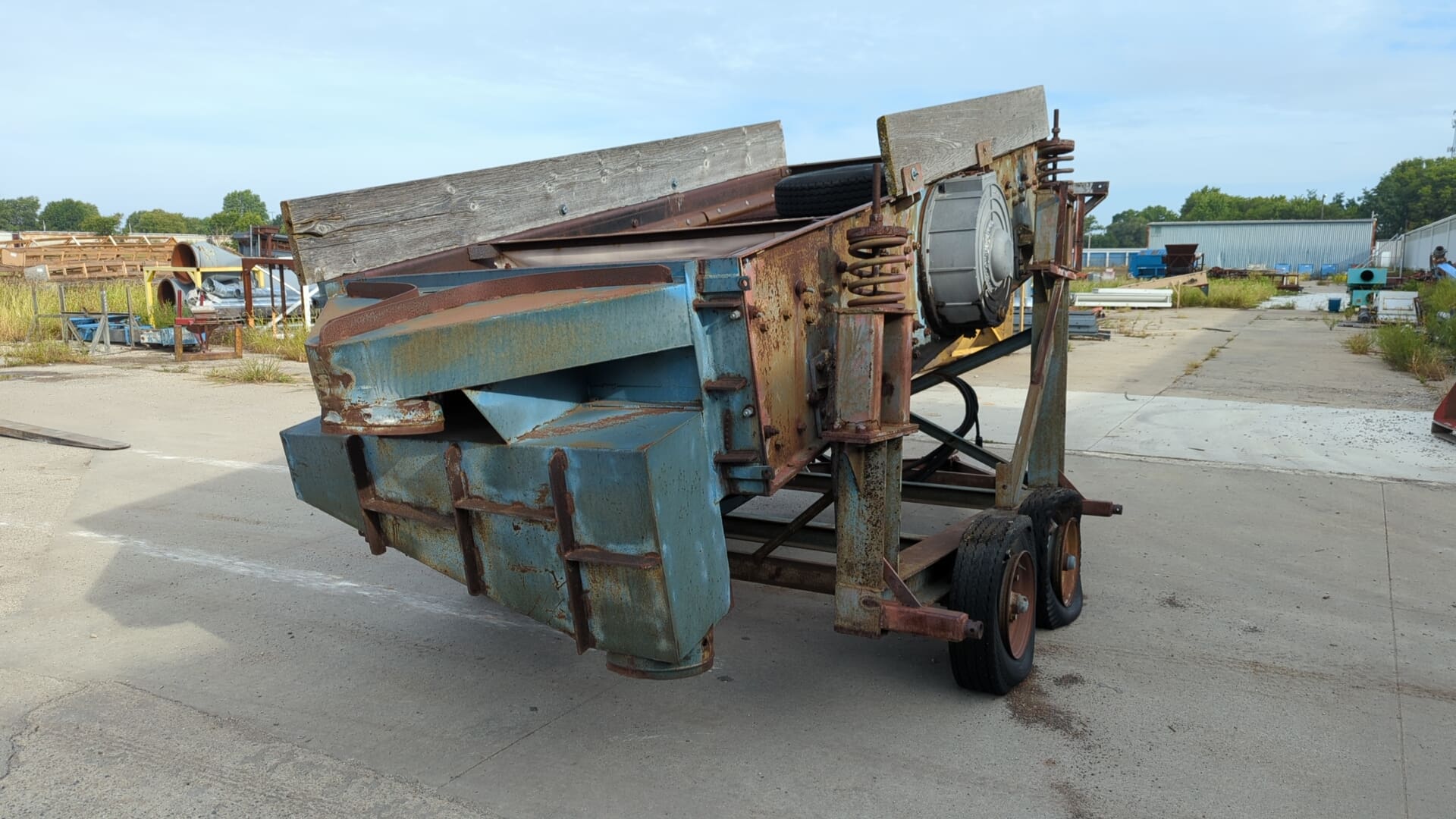

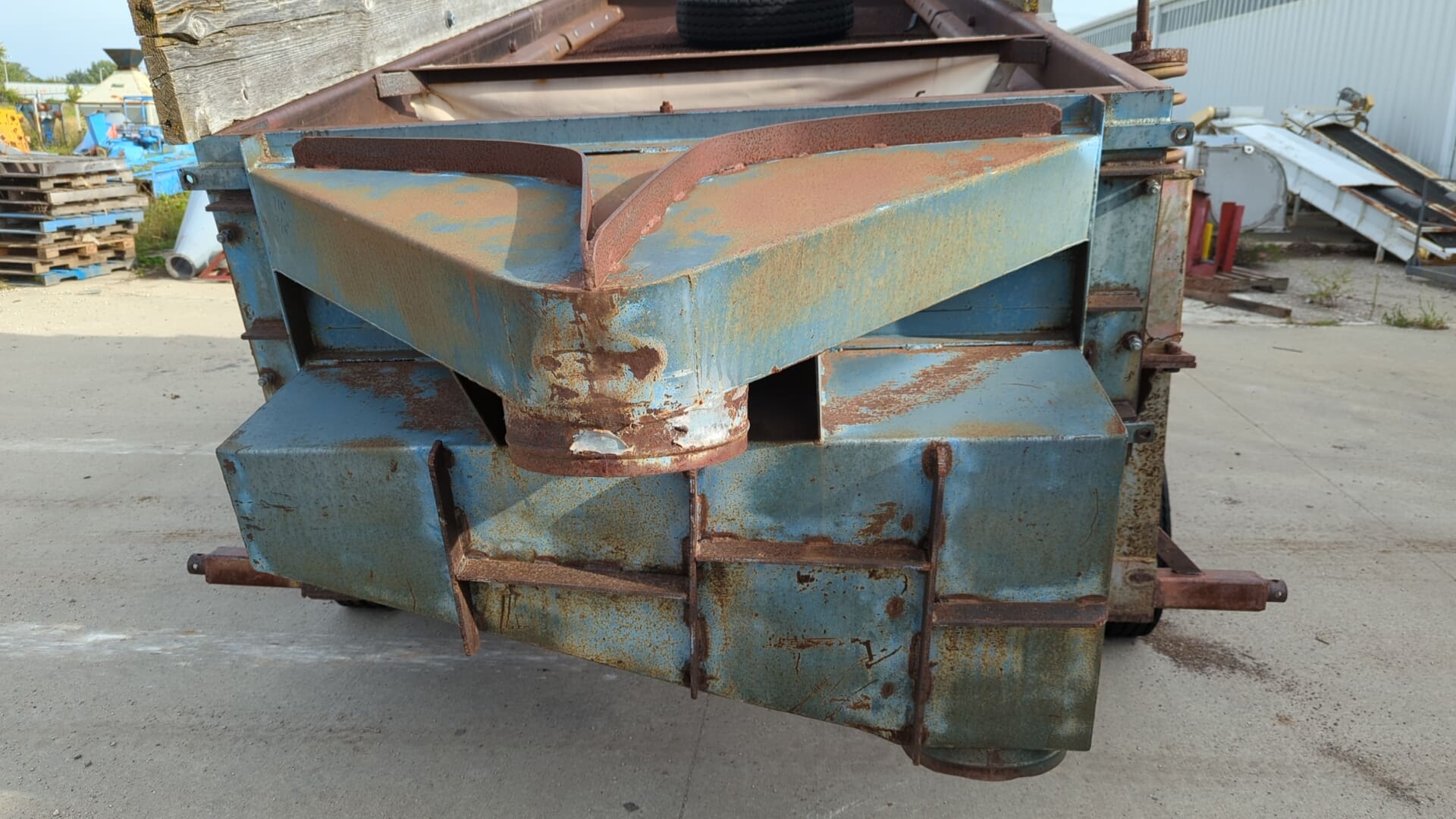

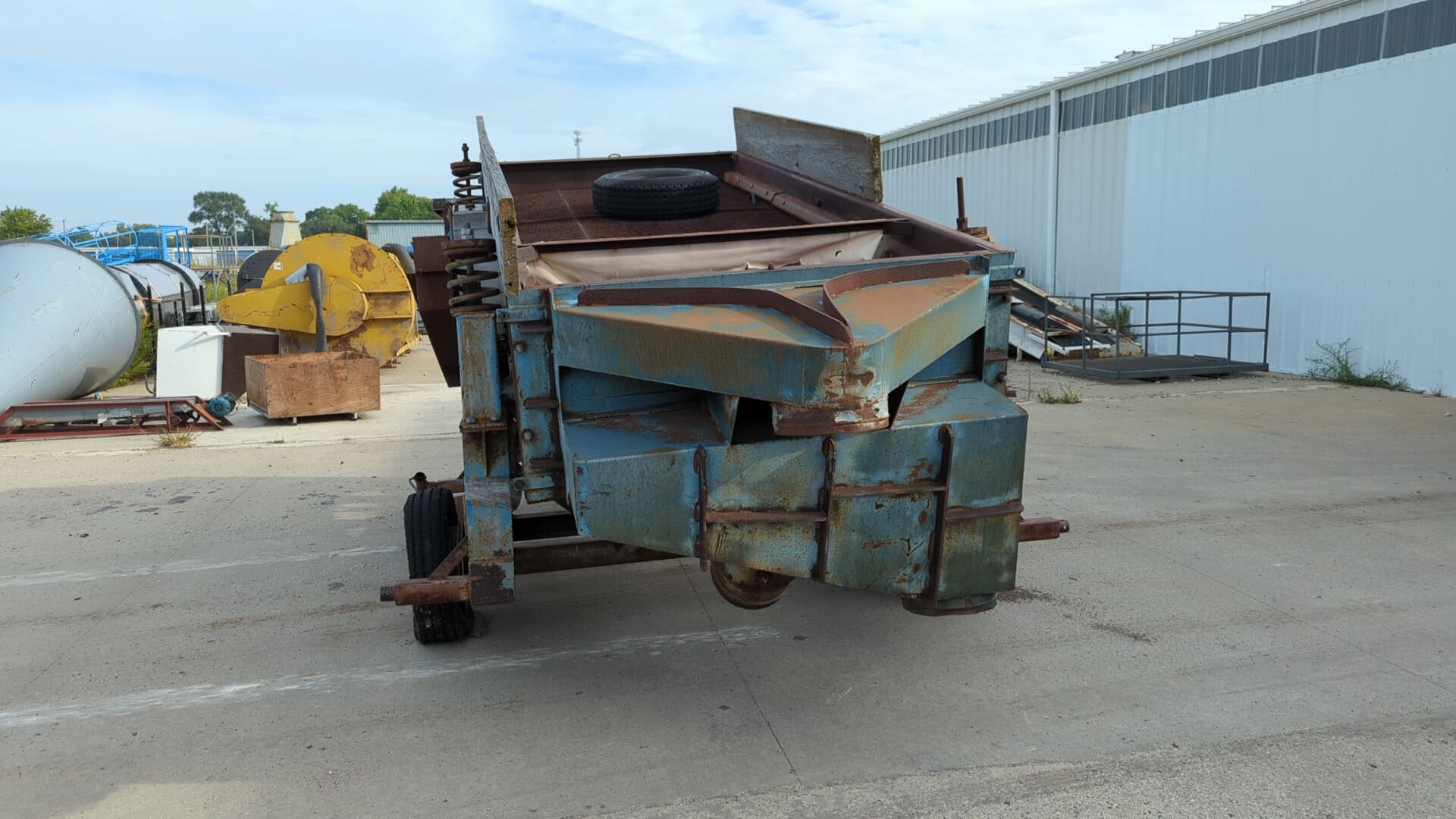

• Material Discharges: Configured with three separate discharges to segregate material into oversized, desired product, and undersized fractions.

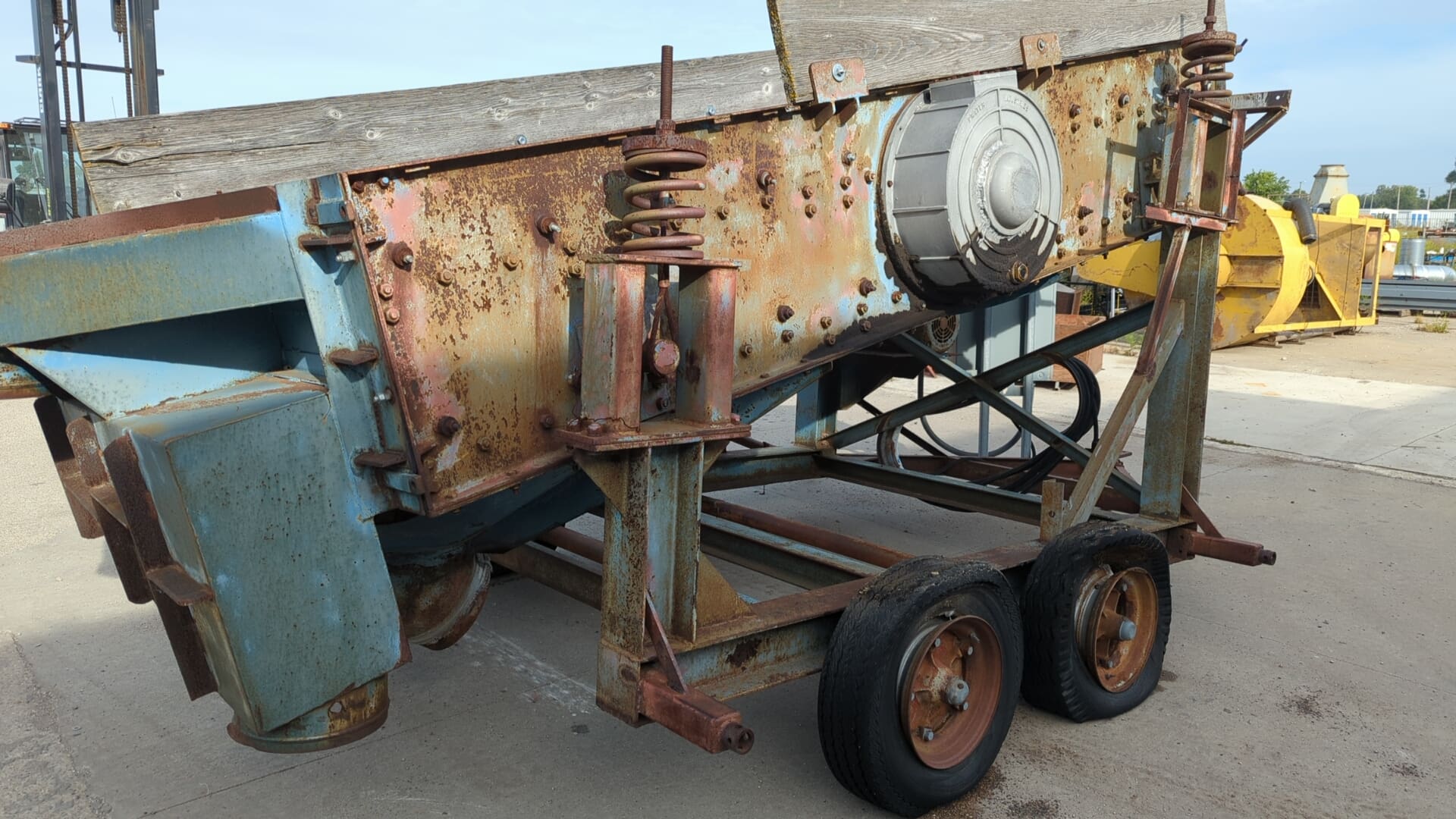

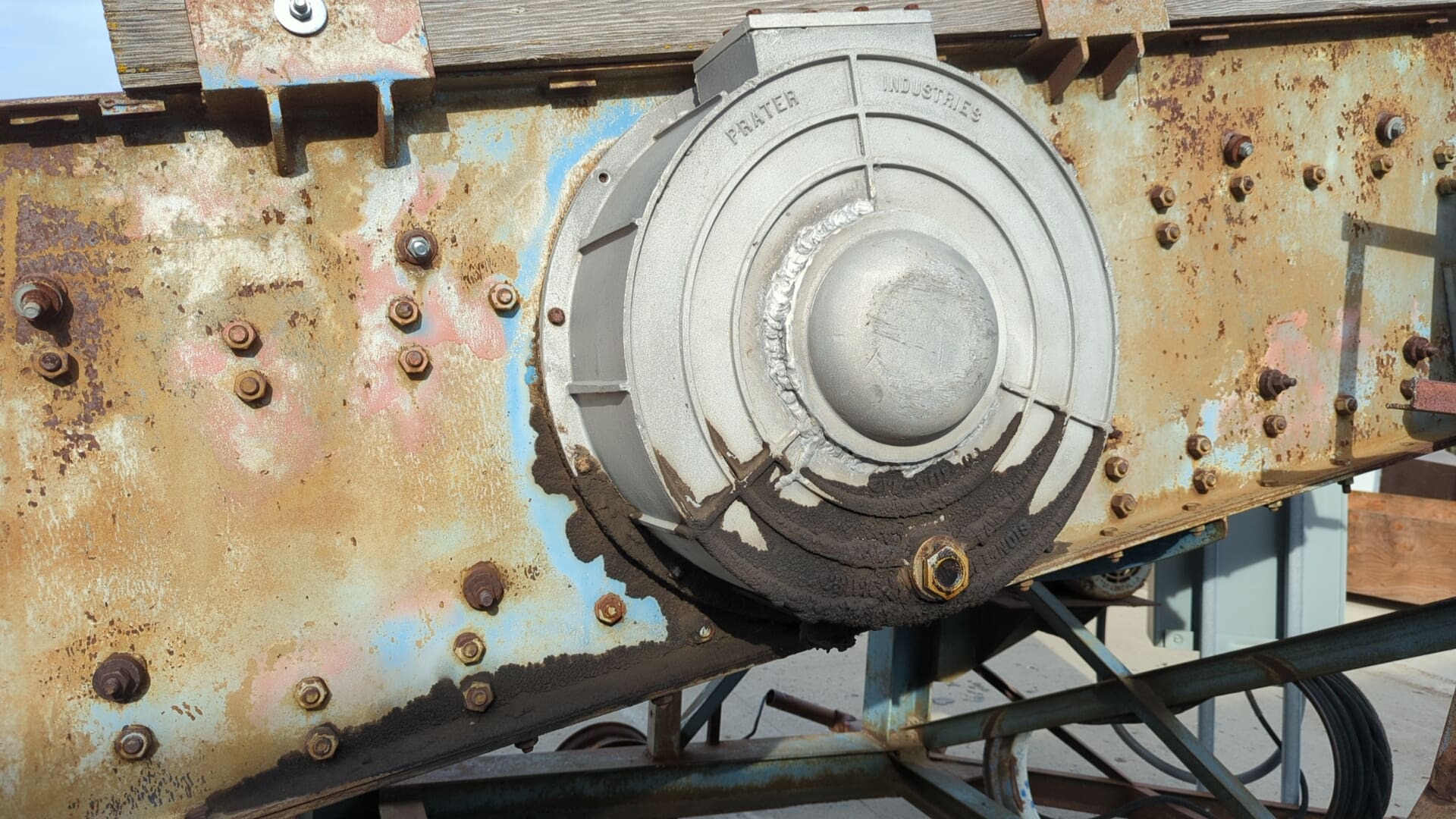

The unit utilizes a motion generator to create a positive eccentric motion along a vertical plane. High frequency paired with a short stroke amplitude delivers maximum screening efficiency and optimal material stratification. It is highly adaptable and can be deployed in either base-mounted or suspended configurations depending on the facility setup. Common industrial applications include aggregate processing, mining, feed processing, seed and grain cleaning, and fine particle removal.
